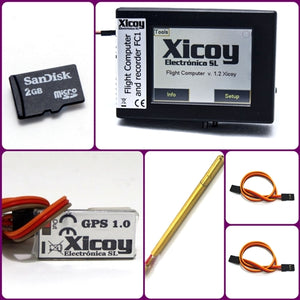

Flight Computer Full kit-Xicoy

Flight computer for  Xicoy V10 Fadecs

V6 and older in option.

Features:

• 2.4” full color touchscreen display, high quality, sunlight readable.

• Connection to the Xicoy fadec to collect the engine data and display in graphical form.

• GPS module  included to collect the coordinates, ground speed, date, time and altitude.

• 3 axis accelerometer to measure the G load in all 3 axis.

• Barometer/altimeter/termometer. Measures barometric altitude and air density to calculate the engine performance.

• Airspeed pressure sensor to measure the airspeed using a pitot tube.

• Telemetry output to send all the data trough the telemetry link of the radio. Currently supported Jeti, Futaba, HoTT, Multiplex, Spektrum, JR DMSS and Weatronic.

• uSD card to store all measures from sensors, battery voltage, engine data, Supplied with a card capable of 2.000 hours of recording, one set of data each 0,5.

• Output for 2 high power LED, to visually show the airspeed during landing.

Data analyzable by a supplied computer software and exportable to Excel and Google Earth.

• Software updatable trough the uSD card.

Includes lead and uSD memory card.

 Please contact us if your ecu is an older model (Connection using an 8 pin connector) so that we can supply the apprpriate converter.
