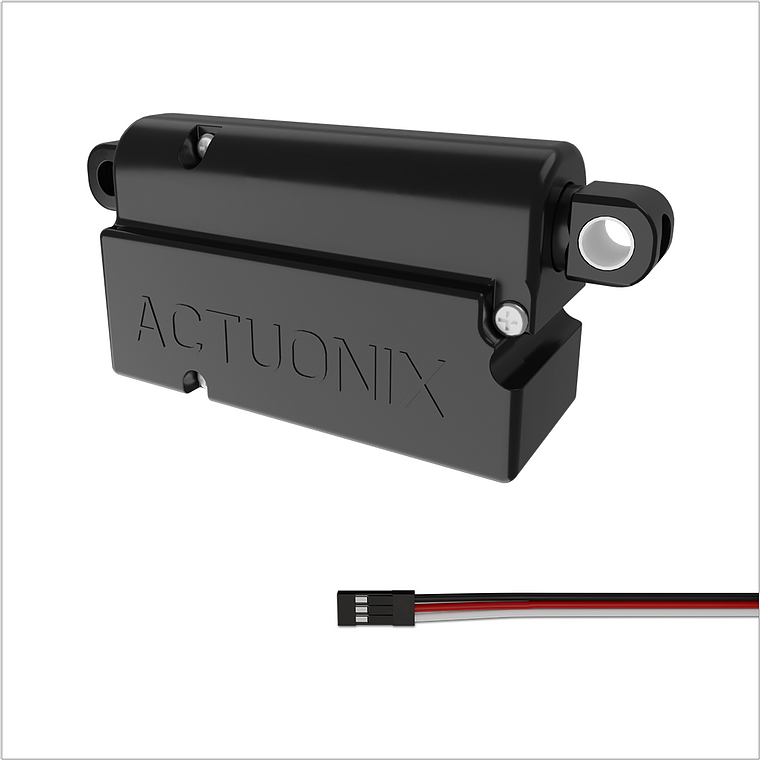

PQ12-R Micro Linear Servos 20mm Stroke

  • $70.00
Shipping calculated at checkout.


Weighing in at just 15g, the PQ12-R is our newest and smallest micro linear servo! The PQ12-R series micro linear servos operate as a direct replacement for standard rotary servos. They use the same standard 3 wire connector, ground, power and control. Regardless of how you drive your servos, be it with an RC receiver, an Arduino board, or a VEX micro-controller, the PQ12-R servo will function in place of a regular servo, but with the added benefit of providing linear motion.  If you're looking for the smallest linear servo that can handle a max force of up to 11lbs, then the PQ12-R series is for you!

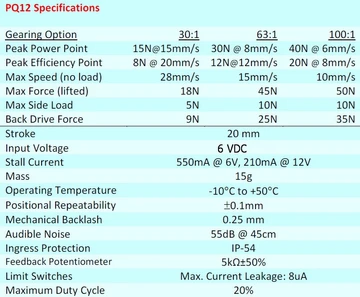

  • Peak Power Point: 40N at 6mm/s
  • Gear Ratio: 63:1, 100:1
  • Max Speed (no load): 15, 10mm/s
  • Input Voltage: 6V
  • Stall Current: 550ma at 6V
  • Weight: 15g

    NOTE: The PQ12-R will not operate with Futaba receivers like the R6014FS that output 2.7 volts. You will need a Smart Fly Power Expander or Orbit Power Jack to bring the signal level up to 5vdc for the PQ12-R to operate.

    Check out the video below for an example of the PQ12 in action.

    https://youtu.be/rD9YRxRv-iQ
